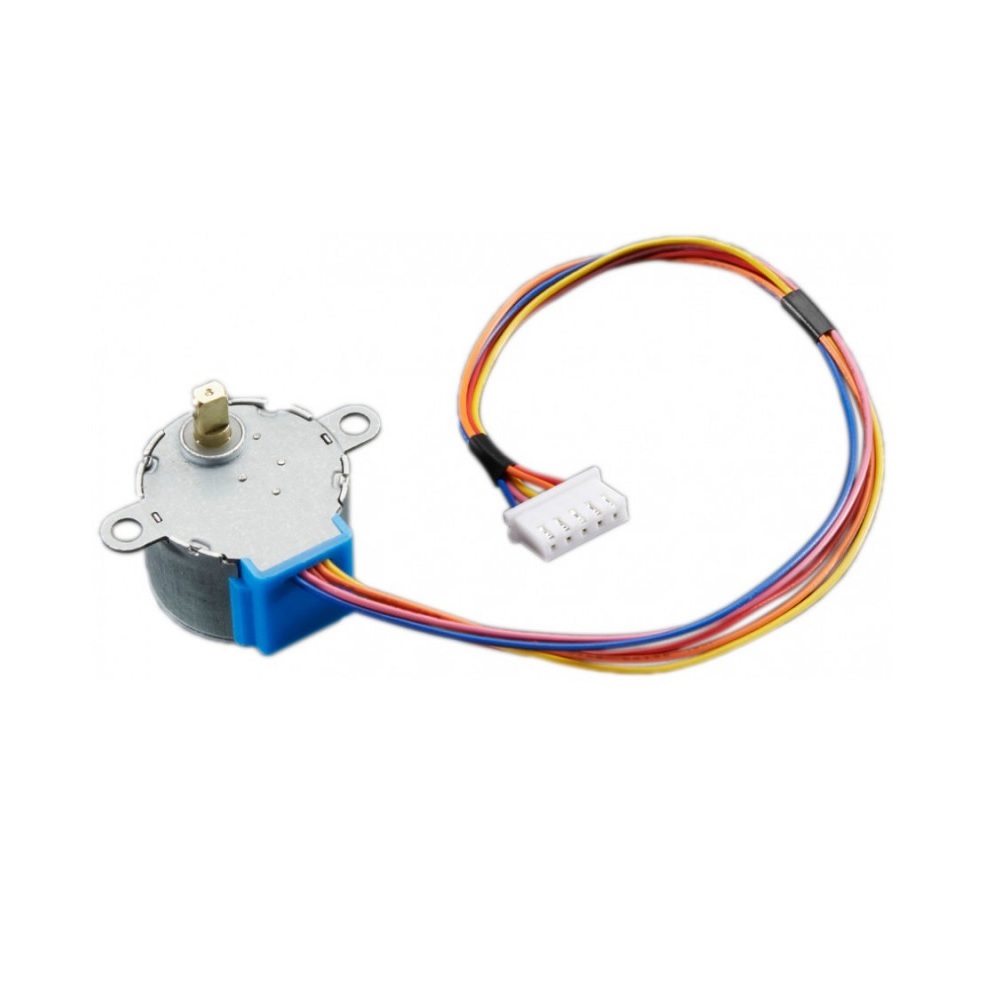

Stepper Motor(28YBJ-48) 5V DC

SKU: AR-28YBJ-5V
  1. Rated voltage: 5V DC
  2. Reduction Ratio: 64:1
  3. Step Angle: 5.625° /64
  4. Frequency: 100Hz
  5. Self-positioning Torque: >34.3mN.m
₹76.70 (Including GST)



This  28BYJ-48 Stepper Motor DC 5V is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed the quality of these compact stepper motors. The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor that has 5-wires. As stated before the pack contains ULN2003 Stepper Motor Driver which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor.

Features :

  1. Brand new and high-quality product.
  2. Stepper motor with a standard interface, when used directly pluggable.
  3. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
  4. Compact size stepper motor perfect for small robotics applications.

Specification :

Self-positioning Torque >34.3mN.m
Rated Voltage 5VDC
Reduction ratio 64:1
Step Angle 5.625° /64
Frequency (Hz) 100
Friction Torque (gf-cm) 600-1200
Pull-in torque (gf.cm) 300




Pacjage Includes:

1 x Stepper Motor(28YBJ-48)  5V DC
