SKU: AR-TUR-SK
- VCC: Positive supply voltage, 5V cannot be used 3.3V
- AO: analogue signal output, output voltage range 0~5V
- DO: digital signal output is less than the set value and outputs high level; greater than the set value and outputs low level
- GND: negative supply voltage
₹1178.82
(Including GST)

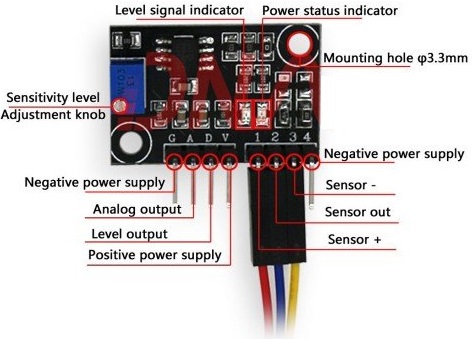

It can be used to measure the degree of water pollution of products such as washing machines and dishwashers; it can also be used in industrial field control, environmental sewage collection and other occasions that require turbidity detection and control. The composition of the turbidity sensor module is shown below. The module is connected to the turbidity sensor through the 3Pin XH-2.54 connector. Adjust the knob of 10K blue potentiometer to adjust the trigger threshold of digital output.
SPECIFICATION :
| Working voltage | 5.00V DC |
| Working current | 40mA (MAX) |
| Response time | <500ms |
| Insulation resistance | 100M (Min) |
| Analog output | 0~4.5V |
| Digital output | high/low level signal (the corresponding threshold can be selected by adjusting the potentiometer) |
| Operating temperature | -20~90 |
| Module size | 38.6mm x 22.1mm |
PACKAGE INCLUDES :
1 X Turbidity Sensor Suspended Turbidity Value Detection Module Kit
